Hanxin (guangdong) Communication Equipment Co., Ltd.

FiberOpticCable(GYFXTBY)-HANXINFIBERCABLE

Fiber Optical Cables/

Fiber Optic Cable (GYFXTBY)

Accurately controlling the residual length of optical fiber ensures good tensile properties and temperature characteristics of optical cable ;
PBT loose tube material has good resistance to hydrolysis, filled with special ointment to protect the optical fiber ;
Fiber optic cable is non-metallic structure, light weight, easy laying, anti-electromagnetic, lightning protection effect is better ;
Larger number of core than ordinary butterfly-shaped optical cable products, suitable for access to more densely populated villages ;
Easy to peel, reduce the time of pulling out the outer sheath, improve the construction efficiency ;
It has the advantages of corrosion resistance, UV protection and environmental protection.

  • Product Detail
  • Application
  • FAQs
  • Packing&Delivery

Product Description

GYFXTBY fiber cable is an arc runway fiber cable, which is made of multiple ( 1 – 12 cores ) 250μm colored fibers embedded in the internally filled waterproof compound loose tube made of high-modulus plastic, a non-metallic tensile element ( FRP ) is placed on both sides of the loose tube, and a rip cord is placed on its outer layer, and then the high-density polyethylene is extruded to form an HDPE sheath.

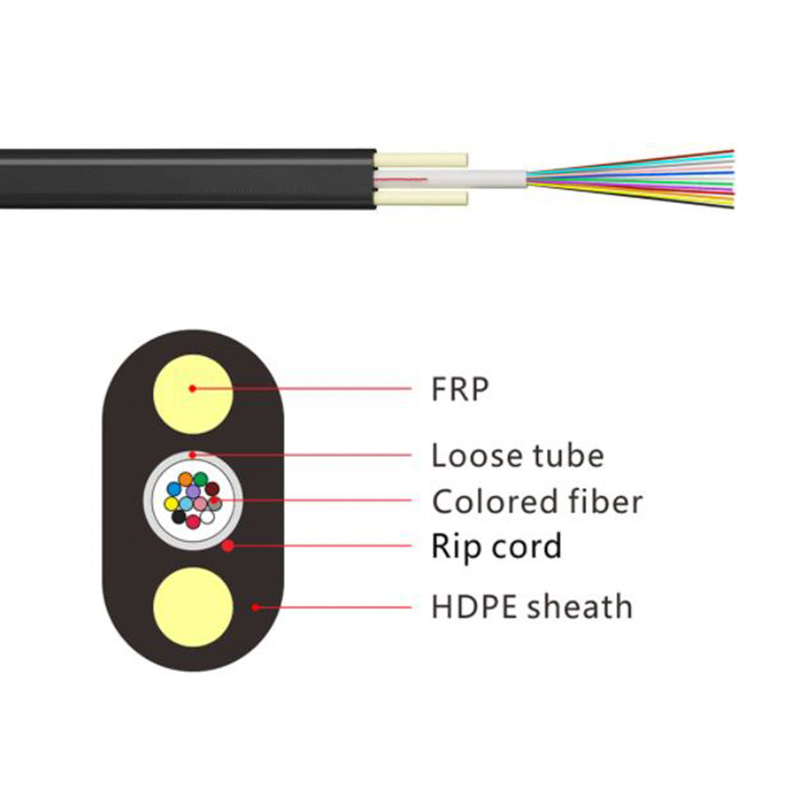

Product Structure

Product Features

Accurately controlling the residual length of optical fiber ensures good tensile properties and temperature characteristics of optical cable ;
PBT loose tube material has good resistance to hydrolysis, filled with special ointment to protect the optical fiber ;
Fiber optic cable is non-metallic structure, light weight, easy laying, anti-electromagnetic, lightning protection effect is better ;
Larger number of core than ordinary butterfly-shaped optical cable products, suitable for access to more densely populated villages ;
Compared with butterfly-shaped optical cable, runway structure products have stable optical transmission performance with no risk of water accumulation, icing and egg cocoon ;
Easy to peel, reduce the time of pulling out the outer sheath, improve the construction efficiency ;
It has the advantages of corrosion resistance, UV protection and environmental protection.

Product Standard

•YD / T769-2010, GB / T 9771-2008, IEC794 and other standards

Optical Characteristics

Technical Parameters

ber CountCable Diameter
      mm
Cable Weight
      Kg/km
Tensile Strength
      Long/Short Term
      N
Crush Resistance
      Long/Short Term
      N/100m
Bending Radius
      Static/Dynamic
      mm
1-12 core4.5*8.546400/1200300/100030D/15D
Storage/Operating Temperature : -20℃ to + 60℃

Telecommunication

1.Are you factory or trading company?
We have 2 big factories, one is for fiber optic cable, the other one is for communication equipments,so we can offer you high quality ,factory price and fast delivery. Welcome to visit our factory, we can pick you up from airport.
2. Can I buy samples before placing orders?
Yes.We are happy to send you sample to test quality.
3.What is your lead time?
-For usual products, we have stock, we can ship out within 3 days. If we don’t have stock,It depends on the quantity , normally 7 days to 15 days.
4.What is your payment term?
30% as deposit, balance before delivery. Or balance againest copy of BL.
5.What is the shipping method?
-By sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
6.Can you offer ODM&OEM?
-Yes, we accept ODM&OEM.We have our own R&D team with 18 years experience.

The bulk cargo of optical fiber equipment can be transported by air or by sea; the whole container can be transported by sea. The shipping time for conventional goods is 3-5 days, and OEM goods are generally shipped within 7-10 days. All packaging is in accordance with customer requirements.
