Hanxin (guangdong) Communication Equipment Co., Ltd.

FTTHdouble-flyfiberdropcable-HANXINFIBERCABLE

Fiber Optical Cables/

FTTH double-fly fiber drop cable

·Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
·Two parallel FRP/KFRP or steel wire strength members ensure good performance of crush resistance to protect the fiber;
·Simple structure, light weight and high practicability;
·special tube filling compound ensure a critical protection of fiber.
·Single steel wire or stranded steel wires together with the strength member ,  ensure good tensile properties of the fiber cable;
·Novel flute design, easily strip and splice, simplify the installation and maintenance;
·Low smoke, zero halogen and flame retardant sheath.
·Unique double-fly design make the installation more simple, time-saving and cut down cost.

  • Product Detail
  • Application
  • FAQs
  • Packing&Delivery

Product Description

FTTH double-fly indoor cable, in the center there are two optical fiber units, Two parallel FRP/KFRP or steel wire are placed at the two sides of the optical fiber units separately. Then the cable is completed with a black or color LSZH sheath.

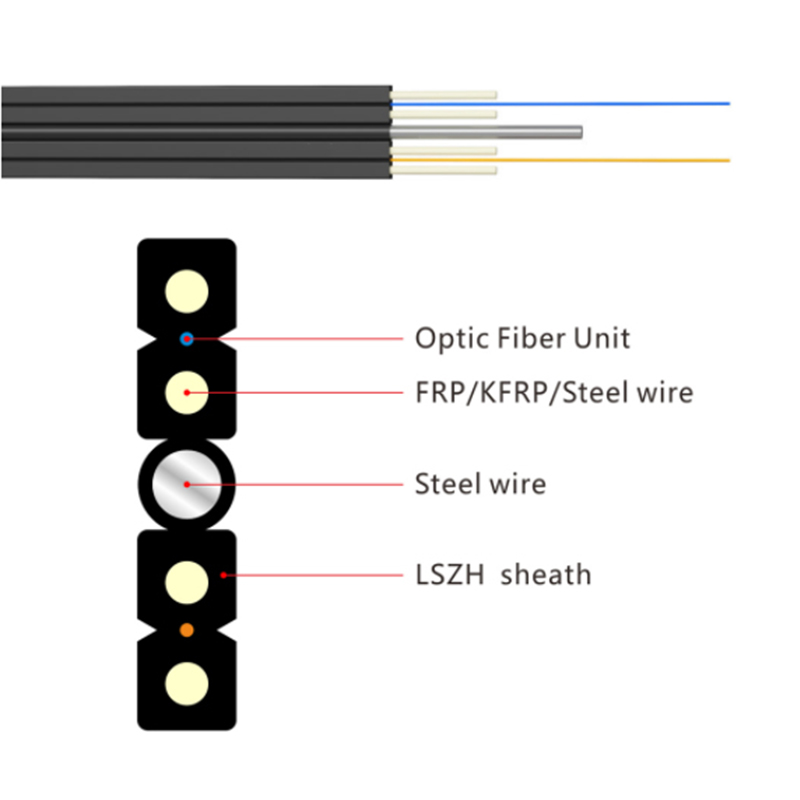

Product Structure

Product Features

·Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
·Two parallel FRP/KFRP or steel wire strength members ensure good performance of crush resistance to protect the fiber;
·Simple structure, light weight and high practicability;
·special tube filling compound ensure a critical protection of fiber.
·Single steel wire or stranded steel wires together with the strength member ,  ensure good tensile properties of the fiber cable;
·Novel flute design, easily strip and splice, simplify the installation and maintenance;
·Low smoke, zero halogen and flame retardant sheath.
·Unique double-fly design make the installation more simple, time-saving and cut down cost.

Optical Characteristics

Technical Parameters

Fiber countCable diameter
mm
Cable weight
Kg/km
Tensile strength
long/Short term
N
Crush resistant
long/Short term
N/100m
Bending radius
Static/dynamic
mm
2*1(2.0±0.2)×(8.0±0.2)30500/1000300/100015D/30D
2*2(2.0±0.2)×(8.0±0.2)30500/1000300/100015D/30D
2*4(2.0±0.2)×(8.0±0.2)30500/1000300/100015D/30D
Storage/Operating Temperature : -20℃ to + 60℃

1.Are you factory or trading company?
We have 2 big factories, one is for fiber optic cable, the other one is for communication equipments,so we can offer you high quality ,factory price and fast delivery. Welcome to visit our factory, we can pick you up from airport.
2. Can I buy samples before placing orders?
Yes.We are happy to send you sample to test quality.
3.What is your lead time?
-For usual products, we have stock, we can ship out within 3 days. If we don’t have stock,It depends on the quantity , normally 7 days to 15 days.
4.What is your payment term?
30% as deposit, balance before delivery. Or balance againest copy of BL.
5.What is the shipping method?
-By sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
6.Can you offer ODM&OEM?
-Yes, we accept ODM&OEM.We have our own R&D team with 18 years experience.

The bulk cargo of optical fiber equipment can be transported by air or by sea; the whole container can be transported by sea. The shipping time for conventional goods is 3-5 days, and OEM goods are generally shipped within 7-10 days. All packaging is in accordance with customer requirements.
