Product Description

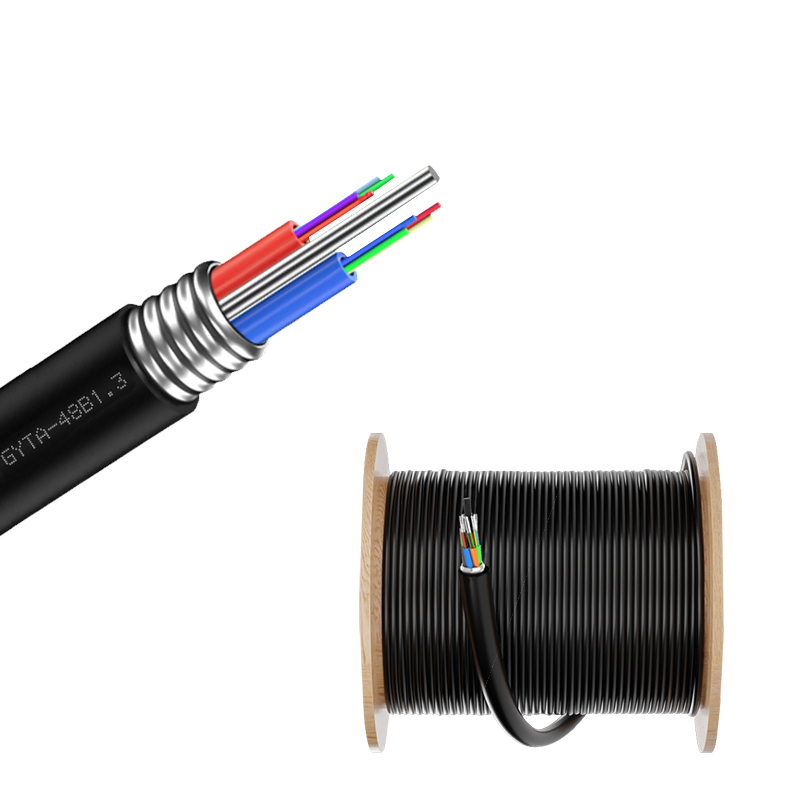

Loose tube stranded armored fiber optic cable (GYTA)
The optical fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound. The center of the cable core is a metal reinforced core, Tubes (and fillers) are stranded around the strength member into a compact and round cable core, which is filled with the waterproofing compound to protect it from water ingress. Plastic coated aluminum tape (APL) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.
Features
• With good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength
.• The loose tube is filled with special gel, which protect the optical fiber
• Specially designed compact cable structure to effectively prevent casing from retracting
• Anti-UV PE out sheath
• Take the following measures to ensure the waterproof performance of the optical cable
-Single steel wire center reinforced core
-Filled with special Water-blocking material in loose tube
-Complete cable core filling
– Moisture-proof layer of plastic-coated aluminum tape (APL)
Product Structure:
Product Parameter
Model No. | Fiber count | Casing | Filled ropes | Weight (kg/km) | Tension (N) | Crush(N/100mm) |
GYTA-2~6Xn | 2~6 | 1 | 4 | 76 | 600/1500 | 300/1000 |
GYTA-8~12Xn | 8~12 | 2 | 3 | 76 | ||
GYTA-14~18Xn | 14~18 | 3 | 2 | 76 | ||
GYTA-20~24Xn | 20~24 | 4 | 1 | 76 | ||
GYTA-26~30Xn | 26~30 | 5 | 0 | 76 | ||
GYTA-32~36Xn | 32~36 | 6 | 0 | 85 | ||
GYTA-38~48Xn | 38~48 | 4 | 1 | 90 | ||
GYTA-50~60Xn | 50~60 | 5 | 0 | 90 | ||
GYTA-62~72Xn | 62~72 | 6 | 0 | 113 | ||
GYTA-74~84Xn | 74~84 | 7 | 1 | 136 | ||
GYTA-86~96Xn | 86~96 | 8 | 0 | 136 | ||
GYTA-98~108Xn | 98~108 | 9 | 1 | 163 | ||
GYTA-110~120Xn | 110~120 | 10 | 0 | 163 | ||
GYTA-122~132Xn | 122~132 | 11 | 1 | 190 | ||
GYTA-134~144Xn | 134~144 | 12 | 0 | 190 | ||
GYTA-146~216Xn | 146~216 | 13~18 | 5~0 | 190 | ||
GYTA-288Xn | 288 | 24 | 0 | 239 |
