All Dielectric Self-supporting Aerial Cable (ADSS)

Product Description

ADSS cable adopts the twisted structure. 250μm fiber is inserted into the loose tube made of high modulus materials. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.The gap of the cable core is filled with a water-blocking yarn and a water-blocking tape longitudinally wrapped by the cable core. After stranded layer of aramid yarn are applied as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

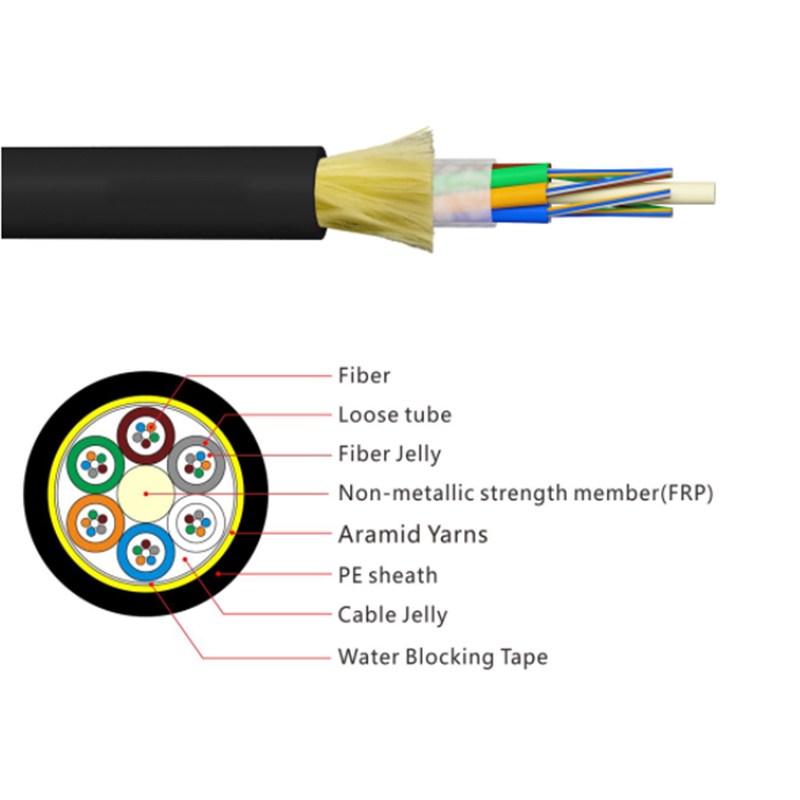

Product Structure

Product Features

·Can be installed without shutting off the power
·Adopt AT performance, excellent dielectric performance
·Light weight and small diameter reducing the load caused by ice and wind and the load on towers
·Good performance of tensile strength and temperature
·The design life span is 30 years

Product Standard

The ADSS cable follows the IEEE P 1222 technical standard, and meets the IEC 60794-1 standard and DLT 788-2016 standard.

Optical Characteristics

Technical Parameters

·The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines 10kv and 35kv, PE outer sheath is applied. ·FOR power lines 110kV and 220KV, AT outer sheath is applied. ·The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

1.Are you factory or trading company?

We have 2 big factories, one is for fiber optic cable, the other one is for communication equipments,so we can offer you high quality ,factory price and fast delivery. Welcome to visit our factory, we can pick you up from airport.

2. Can I buy samples before placing orders?

Yes.We are happy to send you sample to test quality.

3.What is your lead time?

-For usual products, we have stock, we can ship out within 3 days. If we don’t have stock,It depends on the quantity , normally 7 days to 15 days.

4.What is your payment term?

30% as deposit, balance before delivery. Or balance againest copy of BL.

5.What is the shipping method?

-By sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).

6.Can you offer ODM&OEM?

-Yes, we accept ODM&OEM.We have our own R&D team with 18 years experience.

The bulk cargo of optical fiber equipment can be transported by air or by sea; the whole container can be transported by sea. The shipping time for conventional goods is 3-5 days, and OEM goods are generally shipped within 7-10 days. All packaging is in accordance with customer requirements.
