Hanxin (guangdong) Communication Equipment Co., Ltd.

IndoorFigure8Cable(GJFJTC8Y)-HANXINFIBERCABLE

Fiber Optical Cables/

Indoor Figure 8 Cable (GJFJTC8Y)

·Small diameter, light weight and friendly
·High tensile strength of aramid yarn meet the requirements of self-supporting and reduce the installation cost.
·Good mechanical and temperature performance.

  • Product Detail
  • Application
  • FAQs
  • Packing&Delivery

Product Description

GJFJTC8Y cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm fibers,twisting fibers with aramid yarn into the circular cable core,then steel wires assembled into the shape 8 PE sheath.

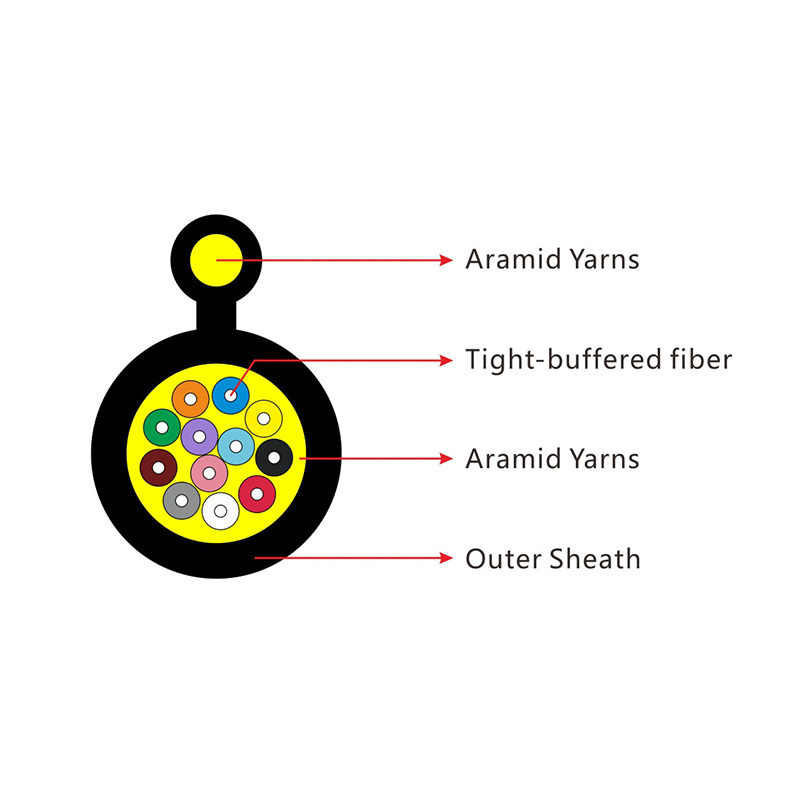

Product Structure

Product Features

·Small diameter, light weight and friendly
·High tensile strength of aramid yarn meet the requirements of self-supporting and reduce the installation cost.
·Good mechanical and temperature performance.

Product Standard

·GJFJTC8Y cable complies with Standard YD/T11155-2011,YDT 1770-2008,IEC794 etc.

Optical Characteristcs

Technical Parameters

    Cable Type      Fiber CountCable Diameter
mm
Cable Weight
      Kg/km
Tensile Strength

  Long/Short Term
N
Crush Resistance

   Long/Short Term
 N/100m

 Bending Radius
             Static/Dynamic mm
GJFJTC8Y23.5×5.519200/400100/200     30D/15D
GJFJTC8Y44.0×6.026200/400100/20030D/15D
GJFJTC8Y65.0×7.030200/400100/20030D/15D
GJFJTC8Y86.0×9.032200/400100/20030D/15D
GJFJTC8Y126.5×9.540200/400100/20030D/15D
·Storage/Operating temperature:-20℃~﹢60℃

Telecommunication

1.Are you factory or trading company?
We have 2 big factories, one is for fiber optic cable, the other one is for communication equipments,so we can offer you high quality ,factory price and fast delivery. Welcome to visit our factory, we can pick you up from airport.
2. Can I buy samples before placing orders?
Yes.We are happy to send you sample to test quality.
3.What is your lead time?
-For usual products, we have stock, we can ship out within 3 days. If we don’t have stock,It depends on the quantity , normally 7 days to 15 days.
4.What is your payment term?
30% as deposit, balance before delivery. Or balance againest copy of BL.
5.What is the shipping method?
-By sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
6.Can you offer ODM&OEM?
-Yes, we accept ODM&OEM.We have our own R&D team with 18 years experience.

The bulk cargo of optical fiber equipment can be transported by air or by sea; the whole container can be transported by sea. The shipping time for conventional goods is 3-5 days, and OEM goods are generally shipped within 7-10 days. All packaging is in accordance with customer requirements.
