Indoor multi-core armored cable (GJASFKV)

Product Description

The structure of the optical fiber cable is a multi-strand aramid fiber reinforced with a multi-core bundle mini ф250μm optical fiber surface. A layer of PVC or LSZH inner sheath is extruded on the stranded surface as a subunit, the subunit is wound with a layer of steel wire armor, The sub-unit and the non-metallic reinforcements FRP (and possible mats) are stranded in a circle, wrapped with a dry water-blocking tape between the core and the sheath, and finally the PVC (or LSZH) sheath is extruded cable.

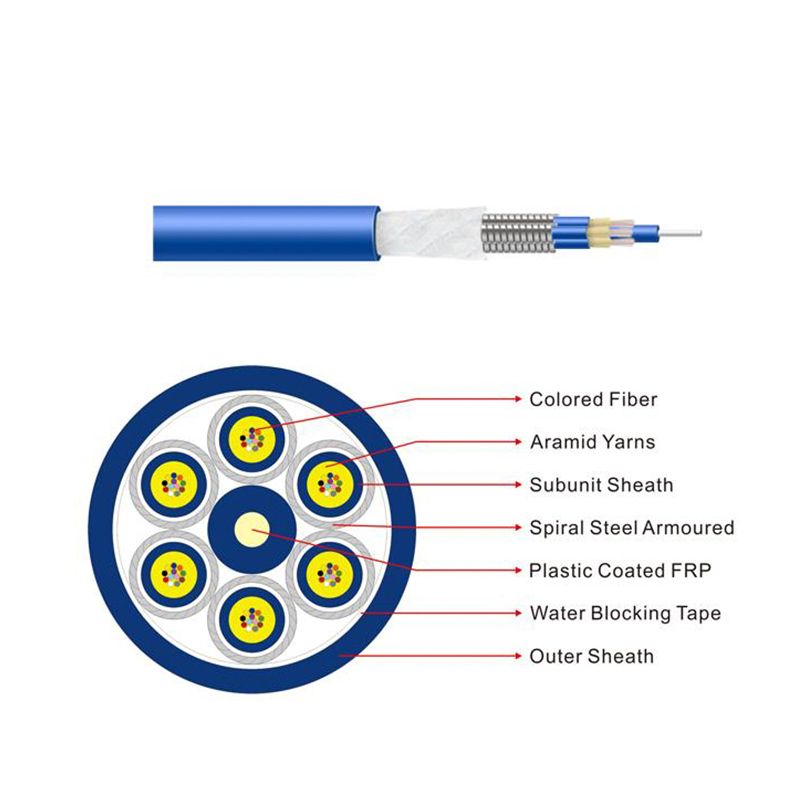

Product Structure

Product Features

Miniature cable, high-strength aramid reinforced, high-performance jacket material protection.
Bending radius is small, light weight, soft, flexible, easy to follow.
Flat wire armored to improve the optical cable compression and anti-rat ability.
Has good mechanical and environmental performance.
Flame retardant or non-flame retardant outer jacket to provide good safety protection.

Product Standard

· GJASFKV cable reference YD / T 2488-2013, IECA-596, GR-409, IEC794 and other standards; In line with UL certification OFNR, OFNP requirements.

Optical Characteristics

Technical Parameters

Cable type   Cable Type	Fiber number   Fiber Count	Subunit outer diameter  Subunit Diameter  mm	Cable diameter   Cable a Diameter  mm	Cable weight   Cable Weight  Kg / km	Allowable tension   Tensile Strength  Long / Short   Long / Short Term  N	Allowable pressure   Crush Resistance  Long / Short   Long / Short Term  N / 100m	Bending radius   Bending Radius  Static / Dynamic   the Static / the Dynamic  mm
GJFJV + SV	72	3.0	14.0	42	300/750	200/1000	20D / 10D
GJFJV + SV	144	3.0	18.0	65	300/750	200/1000	20D / 10D

Temperature

Transport temperature	-20 ℃ ~ +60 ℃
storage temperature	-20 ℃ ~ +60 ℃
Installation temperature	-5 ℃ ~ +50 ℃
Operating temperature	-20 ℃ ~ +60 ℃

· Various conventional connector products.
Pigtail, jumper.
Optical communication equipment room, optical patch panels, fiber to the desktop and other light even.
Optical connection of optical equipment, instruments, etc.
Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection.
· Long-distance, outdoor, building wiring, trunking optical hybrid optical connection.
The backbone of the tail cable, access to the equipment inside the building.
· Small installation space and occasional wiring.
